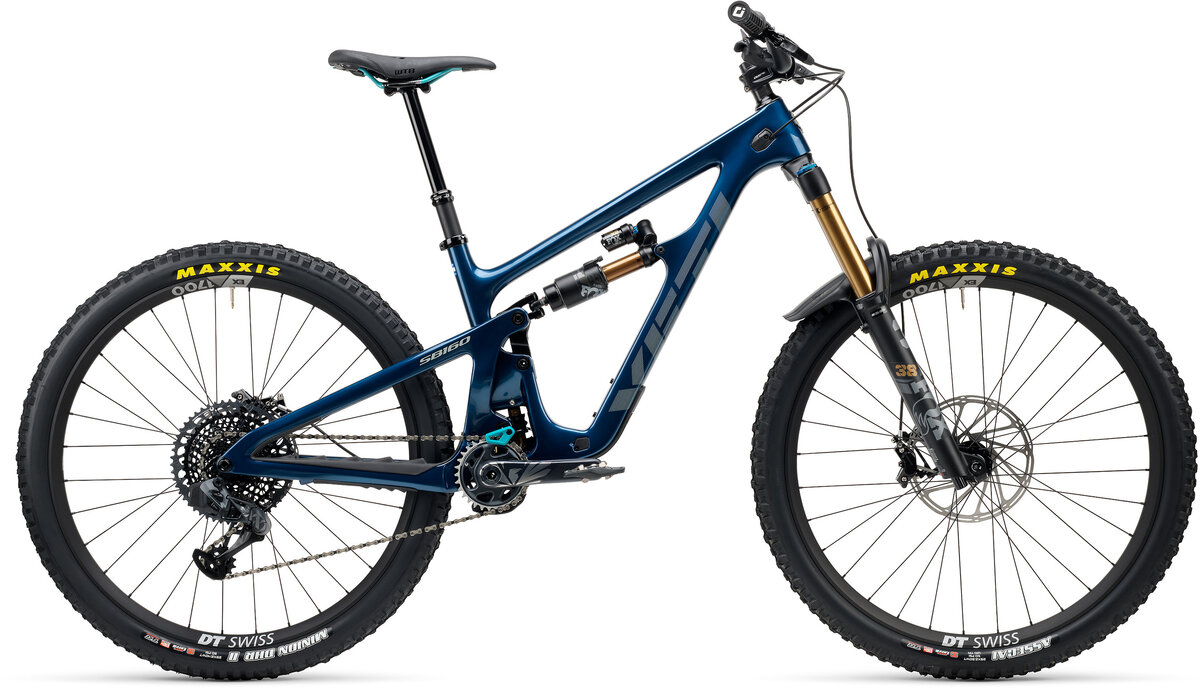

Yeti Cycles SB160 T3

Yeti Cycles SB160 T3
$10,500.00
Color: Cobalt
Size: X-Large
Please select options Unavailable

Details

Upholding a time-tested, race-bred ethos that says nothing should hold a rider back from the sheer joy of untethered speed. Built off one of the most winning race platforms in EWS history, the SB160 is pure race machinery. Honed for more. Be fastest.

Geometry Chart:
Frame SizeSmallMediumLargeX-LargeXX-Large
Wheel Size (IN) 29 29 29 29 29
Reach (mm) 435 465 485 510 525
Top Tube Length [Effective] (mm) 571 602 624 651 670
Stack (mm) 615 620 625 635 655
Head Tube Length (mm) 95 101 107 118 140
Seat Tube Length (mm) 365 400 440 470 485
Seat Tube Angle [Effective] 77.5° 77.5° 77.5° 77.5° 77.5°
Seat Tube Angle [Actual] 72.1° 72.6° 72.7° 73.1° 73.6°
Head Tube Angle 64° 64° 64° 64° 64°
BB Height [Estimated] (mm) 353 353 353 353 353
Front Center (mm) 774 807 829 859 884
Chainstay Length (mm) 437 439 441 443 445
Wheelbase (mm) 1211 1246 1270 1302 1329
Standover (mm) 735 744 750 756 757
Fork [Axle-To-Crown] (mm) 588 588 588 588 588
Fork Travel (mm) 170 170 170 170 170
Vertical Fork Travel (mm) 153 153 153 153 153
Fork Offset (mm) 44 44 44 44 44

Specs

Frame TURQ series carbon
Fork FOX FACTORY 38 GRIP 2/170MM
Rear Shock FOX FACTORY FLOAT X2
Wheels DT SWISS CUSTOM EX1700 30MM
Tires MAXXIS ASSEGAI 2.5 EXO+ / MAXXIS MINION DHR II 2.4 EXO+
Bottom Bracket SRAM DUB BSA 73
Crankset SRAM X1 EAGLE 30T 170MM
Shifters SRAM EAGLE AXS
Rear Derailleur SRAM XX1 EAGLE AXS
Cassette/Freewheel SRAM X01 EAGLE 1295 10-52
Chain SRAM GX EAGLE
Brakes SRAM CODE RSC
Rotors SRAM CENTERLINE 220/SRAM CENTERLINE 200
Handlebars YETI CARBON 35X800MM
Tape/Grips ODI ELITE PRO
Stem BURGTEC ENDURO MK3 35X50MM
Headset CANE CREEK 40 INTEGRATED
Seatpost FOX TRANSFER 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM
Saddle SILVERADO CUSTOM
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Cobalt / X-Large B23160TXLPCBX2TA38700 SB128522088S
