BMC Teammachine SLR FRS

BMC Teammachine SLR FRS
$2,199.00
Color: Carbon/Prisma
Size: 61cm
Please select options Unavailable

Details

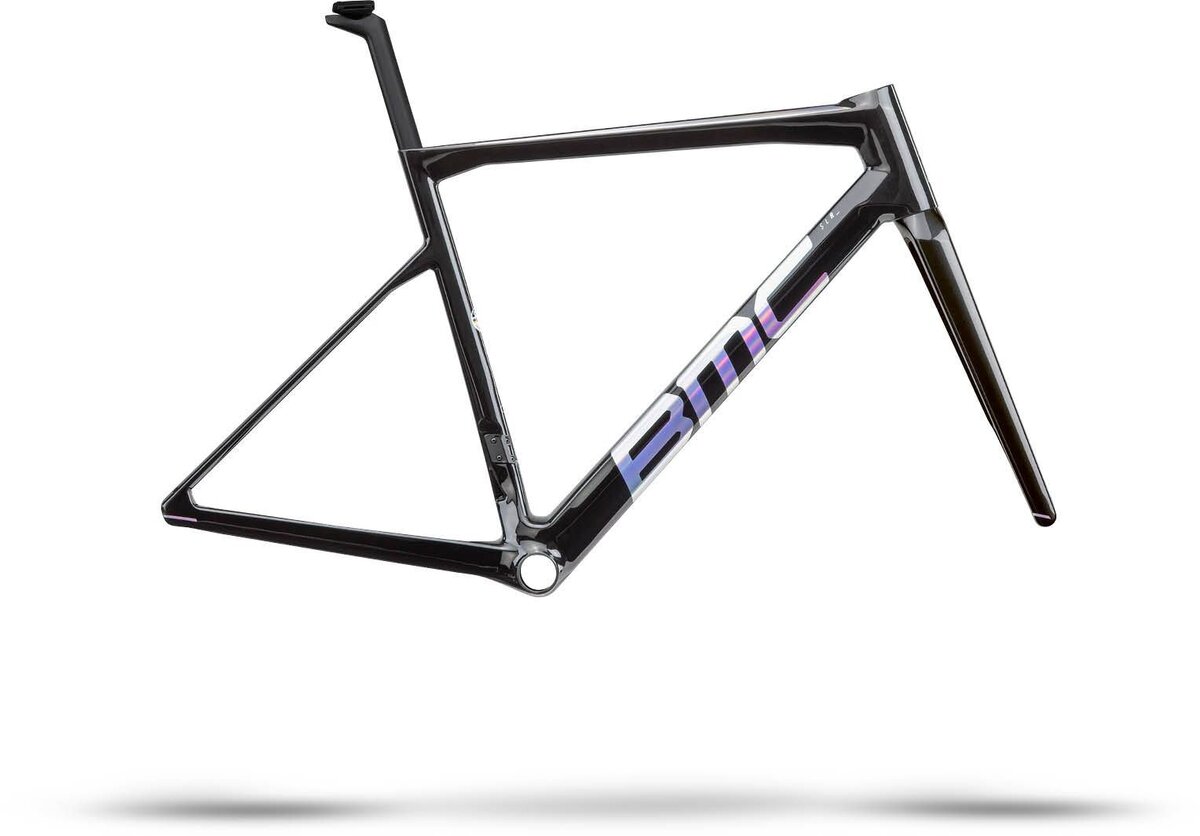

This Teammachine SLR Carbon frame and fork has been created with TCC Race technology, a D-Shape Carbon seatpost, Stealth Dropouts and comes ready to take internal cable routing. The platform of choice for those looking to benefit from this bike's proven performance while building their dream Teammachine.

Geometry

Geometry Chart:
Size475154565861
Rider Height CM <166 166-174 172-180 178-186 184-192 >190
Stack MM 506 530 550 565 584 608
Reach MM (reach) 367 377 386 392 401 409
Seat Tube MM (st) 423 468 504 524 545 574
Top Tube MM (tt) 517 534 549 559 574 589
Head Tube MM (ht) 110 130 145 165 184 210
Seat Tube Angle (sa) 73.5 73.5 73.5 73.5 73.5 73.5
Head Angle (ha) 71.5 71.5 72.3 72.3 72.3 72.3
Rear Center MM (rc) 410 410 410 410 410 410
Front Center MM (fc) 568 586 589 599 614 630
Wheelbase MM (wb) 968 986 989 1000 1015 1030
BB Drop MM (drop) 69 69 69 69 69 69
Fork Length MM (fl) 368 368 368 368 368 368
Fork Rake MM (fr) 48 48 43 43 43 43
Trail MM (trail) 63 63 63 63 63 63
Post Offset MM 15 15 15 15 15 15
Standover Height mm 717 752 779 797 817 843
Seatpost Length MM 330 380 380 380 380 380

Specs

Frame Teammachine SLR Carbon with Aerocore Design, Stealth Dropout Design, TCC Race Compliance Level, PF86 Bottom Bracket, Flat Mount Disc, 12x142mm Thru-Axle, Optimized for Aerocore Bottle Cages
Fork Teammachine SLR Carbon, TCC Race Compliance Level, Internal Cable Routing, Flat Mount Disc, Stealth Dropout Design, 12x100mm Thru-Axle
Seatpost Teammachine SLR Carbon D-Shaped Seatpost 15mm Offset

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Carbon/Prisma / 61cm 07630027884173 30002366 SLR239316783
