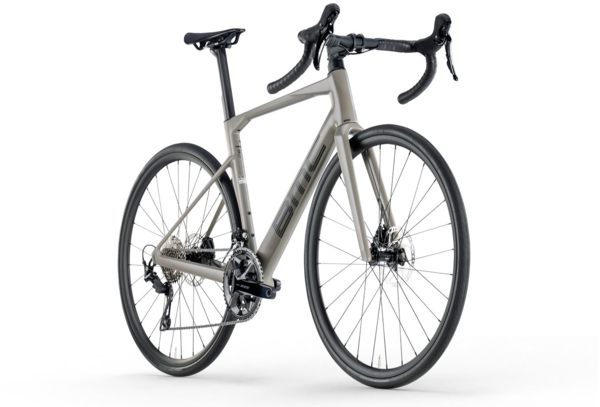

BMC Roadmachine THREE

BMC Roadmachine THREE
Please select options Unavailable
Sorry, this item is currently not available. Please contact us to check availability.

Details

The perfect balance of endurance and speed. Crafted with BMC carbon frame expertise, it features full integration and Shimano 105. It’s your road, your way.

The choice of riders who want to go the distance and aren’t willing to be confined to just one surface. Building on our expertise and legacy of endurance excellence, the Roadmachine combines comfort and efficiency into a highly versatile performance road bike that delivers an outstanding riding experience.

With a lightweight carbon frame, the Roadmachine endurance bike is packed with features like full cable integration, downtube storage, and an integrated rear light, making it ready for any challenge. Wide, fast-rolling tires provide a smooth ride across various road surfaces.

With a reliable Shimano 105 groupset and other quality components, the Roadmachine THREE provides excellent value for money. Our own integrated RSM01 stem and new Endurance Alloy handlebar provide top-notch ergonomics, offering the perfect balance of control and comfort for all your rides.

Sizes:
Size475154565861
Rider Height <160 158-174 172-180 178-186 184-192 >190
Reach 370 379 383 388 393 398
Stack 525 550 570 595 620 645
Bar Drop 125 125 125 125 125 125
Bar Reach 70 70 70 70 70 70
Bar Width 390/438 390/438 390/438 410/458 410/458 430/478
BB Drop 75 75 75 75 75 75
Crank Length 170 170 172.5 172.5 175 175
Fork Length 379 379 379 379 379 379
Fork Rake 50 50 45 45 45 45
Front Center 579 596 594 607 620 633
Head Tube 112 138 154 181 207 233
Head Tube Angle 71.4 71.4 72.2 72.2 72.2 72.2
Rear Center 415 415 415 415 415 415
Seat Angle 74.2 74.2 74.2 74.2 74.2 74.2
Seat Tube 414 461 488 508 529 550
Seatpost Length 280 320 360 360 400 400
Seatpost Offset 15 15 15 15 15 15
Standover Height 726 762 786 807 828 849
Stem Angle -8 -8 -8 -8 -8 -8
Stem Length 90 90 100 100 110 110
Top Tube 520 537 546 559 571 581
Trail 63 63 63 63 63 63
Wheelbase 982 1000 997 1010 1023 1036

Specs

Frame Roadmachine Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | Fender Mounts | Integrated Downtube Storage | Stealth Dropout Design | 12 x 142mm Thru-Axle
Fork Roadmachine Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Fender Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle | 50mm offset Size 47-51 | 45mm offset Size 54-61
Rims PRD23 | 23mm
Hubs SHIMANO HB-TC500-12 & FH-TC500-HL | Center Lock| 28H
Tires Vittoria Rubino V | Tube type | 32mm [or] Vittoria Rubino IV | Tube type | 28mm
Bottom Bracket SHIMANO Press-Fit Bottom Bracket (BB-RS500-PB)
Crankset SHIMANO 105 (FC-R7100)
Chainrings 50-34T
Shifters SHIMANO 105 (ST-R7120)
Front Derailleur SHIMANO 105 (FD-R7100)
Rear Derailleur SHIMANO 105 (FD-R7100)
Cassette/Freewheel SHIMANO (CS-HG710)
Chain SHIMANO CN-M6100
Rotors SHIMANO SM-RT64 | Centerlock
Brake Levers SHIMANO 105 (BR-R7170)
Handlebars BMC HB D4 03, 0, 12 | Alloy 6061 | Endurance Geometry | 125mm drop, 70mm reach, 12° flare
Stem BMC RSM 01 | Integrated Cockpit System Technology
Seatpost Roadmachine Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
Saddle Selle Italia Model X Superflow | FeC Alloy Rail | 145mm
Extras Integrated Rear Light 25 | Storage Pouch

* Subject to change without notice.
